3. Multi-Feature Integration and Visualisation

Each type of cfDNA fragment plot (length, motif, and CNV) can also incorporate mutational data.

This integration is feasible if the GRanges object was created through the execution of readBam(mutation_file = /path/to/file.tsv) or readBam(call_mutations = TRUE).

The default behavior of the readBam() function is to process all DNA fragments within the BAM file. However, by setting mut_fragments_only = TRUE, the function will only analyse fragments that overlap with the specified mutation loci. This option reduces the computational load and may be adequate for users who do not require information from non-overlapping fragments for fragment motif and fragment length analyses.

Below are the various ways to execute the readBam() function:

# Process all fragments present within the BAM file without mutational annotation
readBam(bamfile = "path/to/bamfile.bam")

# Process all fragments present within the BAM file with additional mutation annotation
readBam(bamfile = "path/to/bamfile.bam",
        mutation_file = "/path/to/mutation_file.tsv")

# Process fragments that overlap loci indicated in the mutation file
readBam(bamfile = "path/to/bamfile.bam",
        mutation_file = "/path/to/mutation_file.tsv",
        mut_fragments_only = TRUE)

# Process fragments that overlap loci generated during the pileup
readBam(bamfile = "path/to/bamfile.bam",
        call_mutations = TRUE,
        mut_fragments_only = TRUE)

3.1. Fragment Length and Fragment Mutations

# Process all fragments present within the BAM file with additional mutation annotation
frag_obj <- readBam(bamfile = "path/to/bamfile.bam",
                    mutation_file = "/path/to/mutation_file.tsv")

# Call cfDNA fragment lengths
length_obj <- callLength(frag_obj,
                         integrate_mut = TRUE,
                         ref_type = "locus_fragment",
                         downsample_ref = TRUE)

# Plot normalised MUT and REF fragment lengths
plotLength(length_obj,
           output_file = "/path/to/length_plot.png",
           ggsave_params = list())

The ref_type parameter enables users to specify the type of reference fragments to consider when plotting against fragments associated with a particular mutation.

This parameter accepts two potential values:

ref_type = "locus_fragment": This setting targets fragments that overlap with a known mutation locus but match the reference base. Such fragments typically originate from non-cancerous cells, although it’s possible for non-mutant base fragments to come from cancer cells as well.

ref_type = "outer_fragment": This option selects fragments that do not overlap with any recognized mutation locus. These are generally presumed to be non-mutant base fragments. However, there may be undetected mutations not included in the .tsv file or missed during the pileup process. Consequently, some outer fragments might overlap with these unknown mutations, although this overlap remains undetermined due to the lack of mutational annotation for those fragments. This option requires that the user generates the initial GRanges object with mut_only = FALSE so that outer fragments are included.

The downsample_ref parameter enables users to adjust the number of reference base fragments to match the count of mutant base fragments. This downsampling ensures a balanced comparison between the two types of fragments in analyses.

Plots will be automatically saved if you specify a path and filename using the output_file argument. Additionally, users can customize the plot file using the ggsave_params parameter.

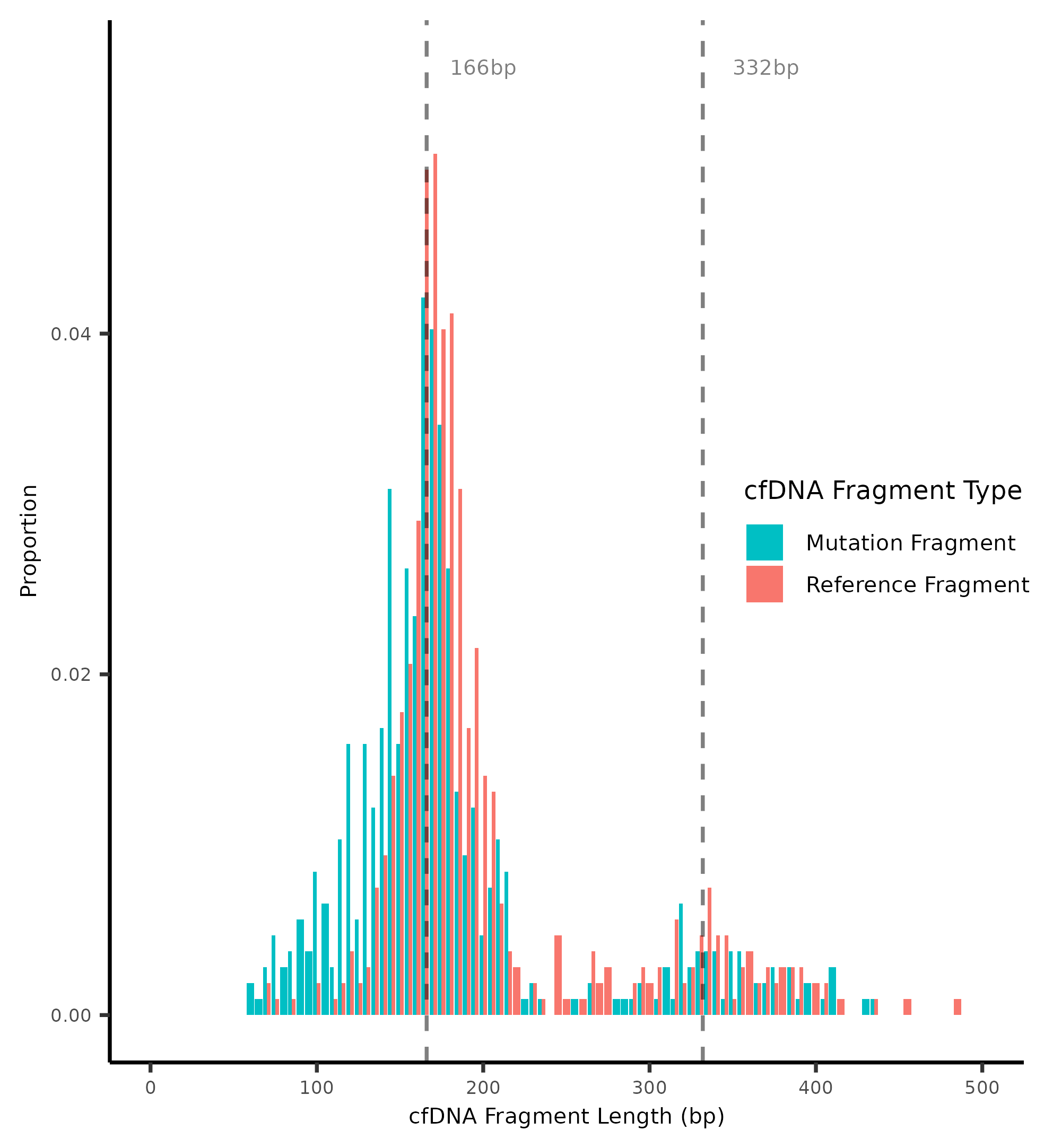

mut_length

3.2. Fragment Motif and Fragment Mutations

The motifs can be plotter similarly.

# Process all fragments present within the BAM file with additional mutation annotation
frag_obj <- readBam(bamfile = "path/to/bamfile.bam",
                    mutation_file = "/path/to/mutation_file.tsv")

# Call cfDNA fragment motifs
motif_obj <- callMotif(frag_obj,
                       integrate_mut = TRUE,
                       ref_type = "locus_fragment",
                       downsample_ref = TRUE)

# Plot normalised MUT and REF fragment motifs
plotMotif(motif_obj,
          output_file = "/path/to/motif_plot.png",
          ggsave_params = list())

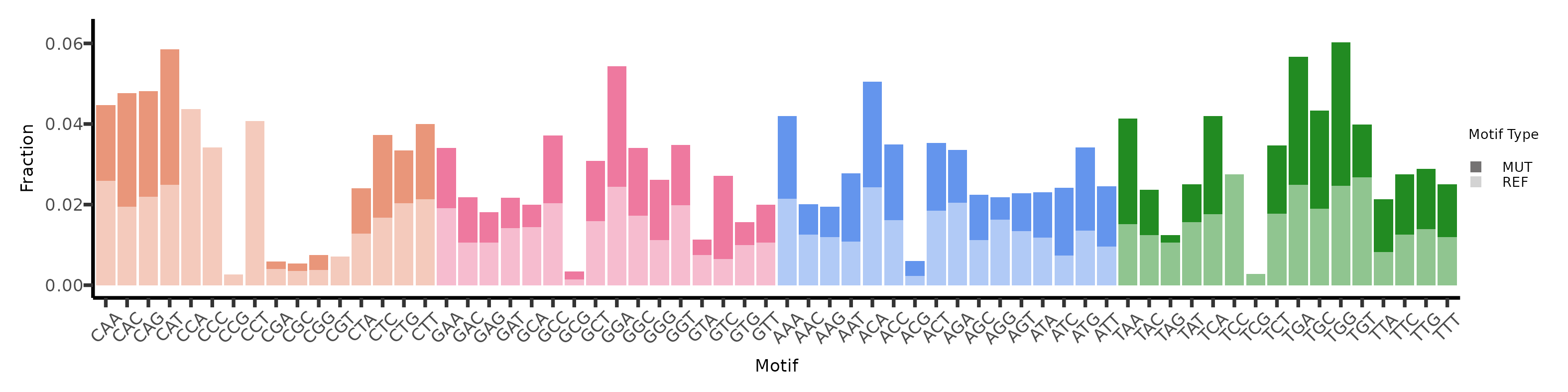

mut_motif

3.3. Copy-Number and Fragment Mutations

You can also plot CNV with integrated mutational information for each SNV within genes of interest. This requires that the gene of interest includes SNVs listed in the mutation file or those processed during the pileup in the readBam() function. The plot will then display total counts of all SNVs within that gene, including both MUT and REF fragments, as an additional annotation for the specified genes.

# First, call the cfDNA fragment length object
cnv_obj <- callCNV(bamfile = "/path/to/bamfile.bam",
                   bin_size = 1000,
                   genome_label = "hg38")

# Process fragments that overlap loci indicated in the mutation file
frag_obj <- readBam(bamfile = "path/to/bamfile.bam",
                    mutation_file = "/path/to/mutation_file.tsv",
                    mut_fragments_only = TRUE)

# Plot normalised MUT and REF fragment lengths
plotCNV(motif_obj,
        frag_obj_mut =  frag_obj
        output_file = "/path/to/cnv_plot.png",
        gene_to_highlight = list("ENTREZID" = NULL,
                                 "ENSEMBL" = NULL,
                                 "SYMBOL" = c("BRAF", "PIK3CA")),
        ggsave_params = list())

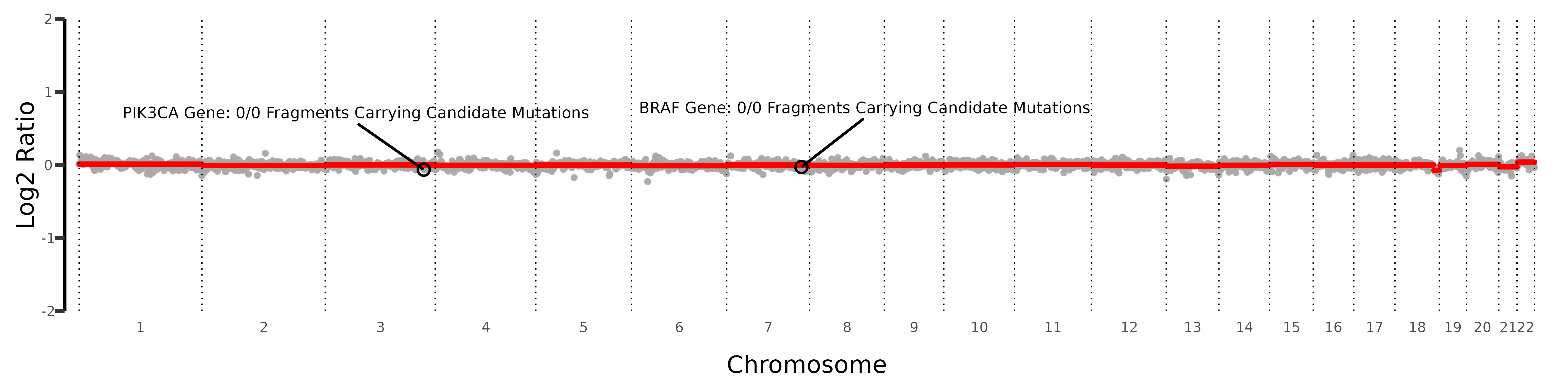

mut_cnv
